Library: OLED_I2C

This library has been made to make it easy to use 128x64 pixel OLED displays based on the SSD1306 controller chip with an Arduino or a chipKit.

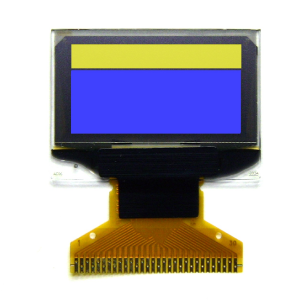

OLED DisplayOLED DisplayOLED Display

This library will default to I2C Fast Mode (400 KHz) when using the hardware I2C interface.

 IMPORTANT:

The library has not been tested in combination with the Wire library and I have no idea if they can share pins. Do not send me any questions about this. If you experience problems with pin-sharing you can move the displays SDA and SCL pins to any available pins on your development board. This library will in this case fall back to a software-based, TWI-/I2C-like protocol which will require exclusive access to the pins used.

Download:

OLED_I2C.zip
(Filesize is 400.03 KiB. Downloaded 14430 times)


Some demos showcasing most of the functions are included in the download.
This is a multi-platform library that will work with several different development board types.

Changes:
v1.001 Mar 2015initial release
v1.0107 Mar 2015fixed a bug in the OLED_I2C_3D_Cube example

Demo Video:

CLICK HERE TO VIEW

Compatibility:

WorkingArduino Duemilanove w/ATmega328
WorkingArduino Uno
Not tested, UnsupportedArduino Leonardo
WorkingArduino Mega
WorkingArduino Mega2560
WorkingArduino Due
Not tested, UnsupportedBobuino
Not workingTeensy 3.1
Working = Working   Not working: Not working
Not tested, Unsupported = Not tested, Unsupported

Manual:

CLICK HERE TO VIEW
The manual is included in the download

License:

By downloading the library you accept the following license:
Creative Commons BY-NC-SA Logo
Creative Commons (CC BY-NC-SA 3.0)
View SummaryView Legal
